Need-To-Know
What is it?

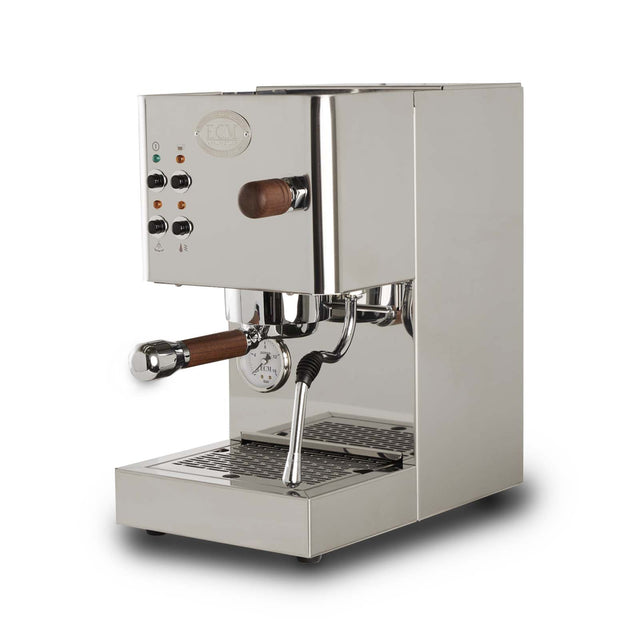

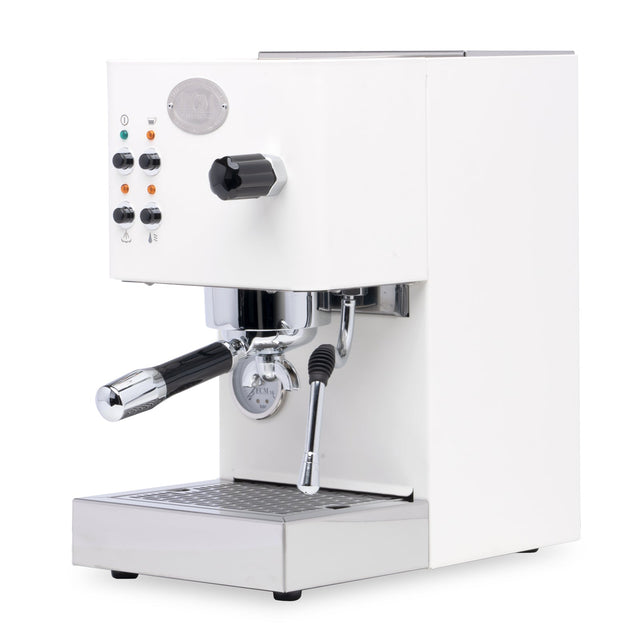

The ECM Casa V is a single boiler espresso machine with a vibratory pump, a saturated group head, and a no-burn insulated steam wand. It runs on its 3-liter internal reservoir.
Who is it for?
The beginner looking for an entry-level espresso machine to cut their teeth on that looks anything but entry-level sitting on their kitchen counter, all while saving a bit of money to invest in a great espresso grinder (good on you for that).
Why do we carry it?
When it comes to low-cost espresso machine you simply can't beat the ECM Casa V's build quality and reliability. It's a minimalist, beautiful machine that will pull solid shots of espresso and steam milk for a cappuccino without any fuss. Its 5-8 minute warm-up time and simple interface make it perfect for those that value pulling a quick, decent shot in the morning more than coffee nerdery.
What's Included
- ECM double spouted portafilter
- Double basket
- Single basket
- Plastic tamper
- Backflush blank
- Grouphead brush
- Water test strip
- Home Barista Starter Kit (courtesy of Clive)
- 3-year parts and labor warranty provided by Clive Coffee
Details
- Boiler pressure gauge
- Fully articulating 'No-burn' steam wand
- Boiler: Brass, .4L
- Reservoir: 3L
- Drip tray: 30oz
Technical Details
| Dimensions | |
|---|---|
| Height: | 14.5 in |
| Width: | 8.25 in |
| Depth: | 13.5 in |
| Weight: | 30.9 lbs |
| Housing | |
| Material: | Stainless steel |
| Drip Tray: | Stainless steel |
| Drip Tray Cover: | Stainless steel |
| Drip Tray Capacity: | 0.88 L / 30 oz |
| Drainable Drip Tray: | No |
| Water Reservoir | |
| Reservoir or Plumbed: | Reservoir |
| Capacity: | 3 L / 101 oz |
| Material: | BPA free plastic |
| Removable: | Yes |
| Low Water Shutoff: | No |
| Steam Wand | |
| Material: | Stainless steel |
| No Burn (Insulated): | Yes |
| Wand Movement: | Articulating, full rotation |
| Steam Tip Holes: | 2 |
| Optional Steam Tips: | Yes |
| Controls | |
| Temperature: | |
| Brew Temperature Adjustment: | N/A |
| Steam Boiler Adjustment: | N/A |
| Display Type: | N/A |
| Display Can Be Disabled: | N/A |
| Integrated Shot Timer: | No |
| Built-In On/Off Timer: | No |
| Display Cleaning Reminder: | No |
| Pre-Infusion: | No |
| Flow Profiling: | No |
| Volumetric Dosing: | No |
| Pressure Gauges: | 1, pump pressure |
| Cup warming tray | |
| Material: | Stainless steel |
| Portafilters & Tampers | |
| Materials: | Chrome plated brass, bakelite handle, counter-balanced chrome tip |
| Type: | Commercial 58 mm |
| Portafilters Included: | 1 (double spouted) |
| Baskets Included: | Single, double, and backflush disk for cleaning |
| Tamper Included: | Temporary plastic tamper |
| Group head | |
| Type: | Saturated, electronic solenoid activated |
| Maintenance: | Urnex Full Circle or Cafiza backflush detergent |
| Boilers | |
| Material: | Brass |
| Brew Boiler Size: | 0.4 L / 13.5 oz |
| Steam Boiler Size: | N/A |
| Steam Speed: | 6 oz of milk in 20 seconds |
| Brew Boiler Power: | 1200 W |
| Steam Boiler Power: | N/A |
| Boilers Automatically Fill: | No |
| Insulated: | Yes |
| Heating Element Access: | Yes |
| Pump | |
| Pump Type: | Vibratory |
| Recommended Brew Pressure: | 9 bar |
| Adjustable Brew Pressure: | Yes |
| Warranty | |
| Clive Warranty: | 3 year |
| Other Details | |
| Recommended Application: | Home |
| Commercial Certifications: | No |
| Plug Type: | Standard 15 amp |
