Renowned for coupling cutting-edge espresso engineering with artful and refined aesthetics, the ECM Mechanika Slim PID heat exchanger boasts a 3-way temperature switch, PID with shot timer, and automatic pre-infusion to give you more control over your morning routine. The midnight blue steam/hot water knobs add a modern touch. The spiritual successor to the Mechanika VI Slim does not disappoint!

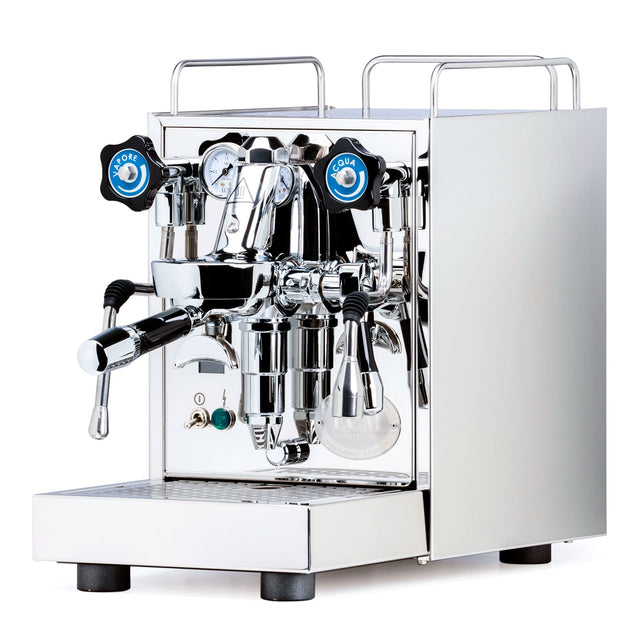

ECM Mechanika Slim PID Espresso Machine
Compare Machines
Regular price
$1,899
Regular price
$0.00
Sale price
$1,899
Unit price
per
Description
Description
Dimensions
Dimensions
What you will need
What you will need
• Burr Grinder
• Precision Scale (in grams)
• Tamping Mat
• Frothing Pitcher (for milk drinks)
• Soft water (75-150ppm)
30-day love it guarantee
30-day love it guarantee
Home espresso is a big investment. We want to make sure that you are 100% in love with your new setup. You have 30 days to return your machine to us without risk. While we can't pay for the shipping on the way back if you change your mind (we absolutely will if there is a problem), we can make the rest of the process as easy as possible.
Shipping & returns
Shipping & returns
In-stock items ship within 1-business day.
Free shipping on orders over $75. To be eligible for free shipping, the final order amount, after applying any discounts, including rewards points, must exceed $75.
Returns are accepted up to 30 days from the date the order was delivered. Smallware items must be unused. Parts are non-returnable. Open Box, Like New, and Factory Blem items are also non-returnable.
Item added to your cart
Not sure what else you need? We've made it easy.
The majority of ECM Mechanika Slim PID Espresso Machine owners also purchased these popular necessities.
Need to Know
What is it?
Big things indeed come in small packages; the Mechanika Slim PID sports a massive 2.2-liter stainless steel heat-exchange boiler with 1.6 bar steam pressure at its high end to produce a luscious microfoam for lattes. The Slim PID adds a PID with a shot timer and two additional features to offer the home barista more control of the brewing process:
3-Way Temperature Switch:
- The middle default position (0)—199-204F
- The lower position (I)—194-199F
- The higher position (II)—204-210F
*Approximate temperature at the group head during extraction
Automatic Pre-Infusion
Pre-infusion helps mitigate channeling issues and can help promote even extraction. After lifting the brew lever, the Slim PID releases a small amount of water for several seconds at low pressure to saturate the puck, pauses, and then kicks on for full pressure.
Who is it for?
Those that demand a lot from their espresso machine. You want your daily ritual to be a tactile, mechanical experience that evokes the romantic history of espresso. It also needs to be built well enough to last for years or decades to come. Sharing this experience with friends and family is just as important, so you want a machine that can produce latte after americano for your next dinner party.
Why do we carry it?
The Mechanika Slim PID is the perfect combination of brains, brawn, and beauty. No other heat exchanger on the market offers as many features as this one, combined with its small size and build quality. For those who demand a lot from their machine, desire a tactile daily ritual, and want a mechanical experience that evokes the romantic history of espresso, the Mechanika Slim PID extends this tradition in spades.
What's Included
- Stainless steel 58mm tamper
- Single spouted portafilter
- Double spouted portafilter
- Single basket
- Double basket
- Blind basket
- Two-hole steam tip
- Cleaning brush
- User manual
- Water test strips
- 3-year parts and labor warranty provided by Clive Coffee
Details
- Heat exchanger
- E61 brew-group
- Vibration pump
- PID temperature control with shot timer
- Three-way temperature switch
- ECO mode
- Pre-infusion on/off
- Boiler and pump pressure gauges
- No-burn, insulated steam wand
- Rotary valve knobs
- Removable drip tray
- Removable cup warming tray
- Boiler: Stainless steel, 2.2L
- Reservoir: 2.8L
Tech Specs
| Dimensions | |
| Height: | 15.5 in (13.75 in with cup rail removed) |
| Width: | 9.8 in |
| Depth: | 17.5 in |
| Weight: | 55.5 lbs |
| Housing | |
| Material: | Stainless steel |
| Drip Tray: | Stainless steel |
| Drip Tray Cover: | Stainless steel |
| Drip Tray Capacity: | 35 oz |
| Drainable Drip Tray: | No |
| Water Reservoir | |
| Reservoir or Plumbed: | Reservoir |
| Capacity: | 3 L / 101 oz |
| Material: | BPA free plastic |
| Removable: | Yes |
| Low Water Shutoff: | Yes |
| Steam Wand | |
| Material: | Stainless steel |
| No Burn (Insulated): | Yes |
| Wand Movement: | Articulating, full rotation |
| Steam Tip Holes: | 2 |
| Optional Steam Tips: | Yes |
| Controls | |
| Temperature: | PID |
| Brew Temperature Adjustment: | N/A |
| Steam Boiler Adjustment: | Yes |
| Display Type: | PID |
| Display Can Be Disabled: | No |
| Integrated Shot Timer: | Yes |
| Built-In On/Off Timer: | No |
| Display Cleaning Reminder: | No |
| Pre-Infusion: | Yes |
| Flow Profiling: | No |
| Volumetric Dosing: | No |

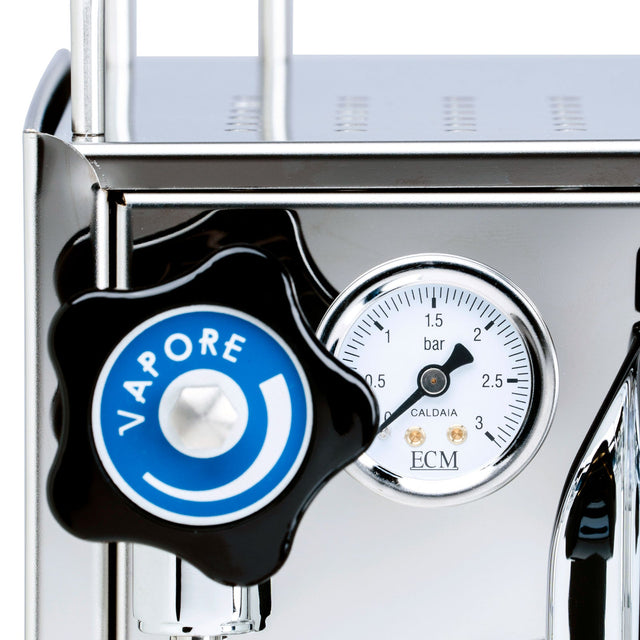

| Pressure Gauges: | 2, pump pressure and steam boiler pressure |
| Cup warming tray | |
| Material: | Stainless steel |
| Portafilters & Tampers | |
| Materials: | Chrome plated brass, bakelite handle, counter-balanced chrome tip |
| Type: | Commercial 58 mm |
| Portafilters Included: | 2 (single and double spouted) |
| Baskets Included: | Single, double, and backflush disk for cleaning |
| Tamper Included: | Yes |
| Group head | |
| Type: | E61, lever activated |
| Maintenance: | Urnex Full Circle or Cafiza backflush detergent |
| Boilers | |
| Material: | Stainless steel |
| Brew Boiler Size: | N/A |
| Steam Boiler Size: | 2.2 L / 74.4 oz |
| Brew Boiler Power: | N/A |
| Steam Boiler Power: | 1400 W |
| Boilers Automatically Fill: | Yes |
| Insulated: | Yes |
| Heating Element Access: | Side |
| Pump | |
| Pump Type: | Vibratory |
| Recommended Brew Pressure: | 9 bar |
| Adjustable Brew Pressure: | Yes |
| Warranty | |
| Clive Warranty: | 3 year |
| Other Details | |
| Recommended Application: | Home or office |
| Commercial Certifications: | No |
| Max Wattage: | 1400 w |
| Plug Type: | Standard 15 amp |
