How to Choose a Heat Exchange Espresso Machine

If you have been shopping for an espresso machine, you have probably felt the pull between two things that are hard to get at once: the freedom to steam milk and pull a shot without waiting, and a machine that does not swallow your whole counter. That is exactly the gap a heat exchanger fills. It lets you brew and steam simultaneously and packs a punch in a home-friendly footprint, which is why it remains one of the most popular entry points to serious home espresso. Whether you are stepping up from a single boiler, moving on from a consumer machine, or you want cafe-style steam power without the bulk of a dual boiler, a heat exchanger is well worth consideration. Best of all, HX machines are more affordable than dual-boilers and offer a more hands-on workflow for home baristas who want a more tactile workflow.

What is a Heat Exchanger?

A heat exchanger, often abbreviated as HX, is an espresso machine built around a single steam-dedicated boiler. Instead of adding a second boiler for brewing (as a dual boiler does) or sharing one boiler between both jobs (as a single boiler does), a heat exchanger runs a coil through the steam boiler. Fresh water passes through the coil on its way to the group head, heating rapidly to brewing temperature. The payoff is that you can steam milk and pull a shot at the same time, or move between the two back-to-back, with no waiting for a boiler to switch jobs. That mix of steam power and simultaneous operation is what makes the HX design so appealing for milk drinkers.

What are the Advantages of a Heat Exchanger?

For many home baristas, a heat exchanger strikes a sweet spot in terms of power, size, and price. Here is what stands out.

• Simultaneous brewing and steaming: Pull a shot while you steam milk, with no mode switch and no waiting for a boiler to change jobs.
• Cafe-style steam power: A dedicated steam boiler gives you the pressure to texture milk for several drinks in a row.
• Compact footprint: An HX packs simultaneous brew-and-steam performance into a smaller chassis than most dual-boiler machines, so it fits in kitchens where a full-size machine simply will not.
• E61 flow control & pre-infusion: Every machine in this guide uses the classic E61 group, which gently saturates the puck before full pressure for a more even extraction. Many of the machines have an automatic pre-infusion phase that you can set and forget. Some models also have flow control capabilities.
• Commercial pedigree: The heat exchanger is the design behind countless cafe machines, so you are getting proven, workhorse engineering at home.
• Reservoir simplicity: Each machine here runs from an internal reservoir with a vibratory pump, so there is no plumbing to worry about.

What About Temperature Control?

The old knock on heat exchangers was temperature control. Because the steam boiler heats brew water, a traditional HX "temperature surfs," drifting within a range rather than holding a single set point, and it will never let you dial in brew temperature to the exact degree, the way a single- or dual-boiler with a PID can.

Now, temperature regulation is much better on modern heat exchangers, and your brew water stays comfortably inside the range espresso requires. Every machine here gives you more accurate temperature control. The Profitec JUMP and ECM Mechanika Slim PID pair a PID with a three-way brew-temperature switch, allowing you to shift between settings suited to light, medium, and dark roasts. The Rocket Appartamento TCA hides an internal PID behind its clean face, with four roast-based presets (196, 200, 203, and 208 degrees). And the Lelit MaraX3 goes furthest, using a dual-probe system that actively prioritizes brew temperature at the group head, plus Brew X and Steam X modes that let you favor espresso or milk depending on the drink. You still will not get single-degree brew control, but you get repeatable, roast-appropriate results, which is what actually matters in the cup.

What is a Cooling Flush?

One HX quirk worth understanding before you buy is the cooling flush. When the machine sits idle, water in the brew coil absorbs excess heat from the steam boiler. Running the group for a few seconds, roughly 5 to 10, before your first shot flushes that hot water out and brings the temperature back into range. It is less a flaw than a small ritual, and on the temperature-managed machines here, it is quick and predictable. If a completely flush-free workflow is a must-have, it is one of the clearest reasons to consider a dual-boiler instead.

So how do you choose? The machines here share the same core DNA (E61 groups, vibratory pumps, and internal reservoirs), so it really comes down to features, design, and build. Here is how the lineup sorts out, from the most compact and feature-rich to the top of the build-quality ladder.

Tier 1: Compact and Feature Rich

Short on counter space or working with a tighter budget, but not willing to compromise performance? We see you and raise you the Lelit MaraX3. It is the smart-money pick and the most feature-dense machine in this category. It's a compact heat exchanger (under 9 inches wide) built on an E61 group and a 1.8L insulated boiler, and it packs in more than machines costing much more. A dual-probe temperature system actively prioritizes brew temperature at the group head; a three-way switch lets you choose between 197, 201, and 205 degrees for your roast; and Brew X and Steam X modes let you lean toward espresso or milk depending on the session. Best of all, it includes Lelit's Pagaia pump-level flow control as standard, so that you can experiment with flow control right out of the box, a rarity at this price.

Pros:

• The most capable for the money, in a compact footprint
• Pagaia pump-level flow control is built in as standard
• Dual-probe control that targets brew temperature, plus a three-way switch and Brew X / Steam X modes
• 1.8L insulated boiler and an E61 group with low-pressure pre-infusion

Cons:

• Reservoir-fed with a vibratory pump, so there is no plumb-in option
• Flow control lives at the pump rather than on a classic E61 group paddle, a different feel for tinkerers who prefer a group-mounted lever


Tier 2: The Design-Forward Middle

If you step up a notch, the conversation shifts from features to aesthetics, feel, and brand pedigree.

• The Appartamento TCA is the minimalist. Rocket kept the clean, screen-free Italian face that made the Appartamento a favorite and hid an internal PID behind it. Instead of a display, you set one of four roast-based temperature presets (196, 200, 203, and 208 degrees) through a simple lever-and-light sequence, then brew, steam, repeat. It runs a 1.8L boiler for strong, back-to-back steam and comes in a range of finishes, so it is the pick if you want temperature precision without a single button interrupting the design.
• The Profitec JUMP is the German counterpoint: a compact E61 heat exchanger with an understated PID display, an integrated shot timer, a three-way temperature switch, programmable pre-infusion, and walnut touch points. It is the more information-forward machine of the two, and it is the only one here you can order with pressure profiling already installed. The standard JUMP leaves the door open with optional LUCCA E61 flow control, while the Profitec JUMP with Flow Control ships with the walnut paddle mounted on the group, ready to tinker with pressure from the first shot.

Pros:

• Distinctive design and build: the Rocket's screen-free Italian minimalism, the JUMP's German build with walnut accents
• Real temperature precision: the Rocket's internal PID with four roast presets, the JUMP's PID display with an integrated shot timer, and a three-way temperature switch
• The JUMP is offered with or without a pre-installed LUCCA E61 flow-control paddle, so pressure profiling is a factory option, not an aftermarket project
• Strong HX steam power for back-to-back milk drinks (1.8L boiler on the Rocket, 1.6L on the JUMP)

Cons:

• Reservoir-fed with vibratory pumps, so neither can be plumbed in
• The Rocket is deliberately simple: no shot timer, no flow control, and temperature is set through a lever sequence rather than a display.
• Adding flow control to the JUMP is a paid step up (choose the Flow Control version if you want it out of the box)

Tier 3: The Pinnacle of Build Quality

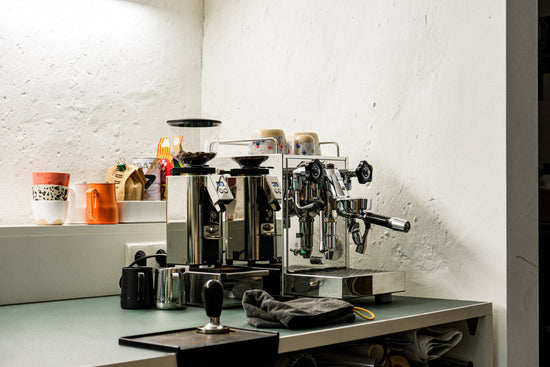

At the top of Clive's heat exchanger lineup sits a modern take on a classic. The ECM Mechanika Slim PID is the spiritual successor to the beloved Mechanika VI Slim, and it is the machine to reach for when fit and finish matter just as much as performance. Built in ECM's Heidelberg factory, it pairs mirror-polished stainless steel and buttery rotary valve knobs with real heft (around 55 pounds), the kind of construction that feels like it will still be pulling shots decades from now. It also carries the largest boiler in this guide at 2.2L, for the most sustained steam power of the bunch, and backs it with a PID, an integrated shot timer, a three-way brew-temperature switch spanning roughly 194 to 210 degrees, and automatic pre-infusion. It is the heirloom-grade pick for a slim footprint.

Pros:

• Top-tier build quality and fit and finish: mirror-polished stainless, rotary valve knobs, and real heft
• The largest boiler of the group at 2.2L for the most sustained steam power
• PID with an integrated shot timer, a three-way temperature switch, and automatic pre-infusion


Cons:

• Reservoir-fed with a vibratory pump, so there is no plumb-in option
• No native flow control, but it can be added DIY with our LUCCA E61 Stainless Steel Flow Control system.

Which Grinder Should You Get?

Your espresso machine will only ever be as good as the grinder you use (along with your coffee beans), so this is not the place to cut corners. There are two directions to consider, depending on how you like to work. For single dosing, where you weigh each dose and grind with almost no waste, look at the Mazzer Philos, a 64mm flat-burr single-dose grinder with near-zero retention, or the Eureka Oro Mignon Single Dose Pro, which uses 65mm burrs and an anti-retention system for clean, low-waste dosing. Both are ideal if you like switching between coffees without cross-contamination. For grind-by-weight with a hopper, the Eureka Atom W 65 and Eureka Atom W 75 built-in scales are accurate to a tenth of a gram so that you can dose straight to weight, hands-free. The larger 75mm burrs on the W 75 grind faster for higher volume.

Start With the Right Accessories

A new machine is a lot more enjoyable when it arrives with the essentials, and starting right saves a lot of trial and error. The LUCCA Espresso Accessories Kit covers the daily workflow tools that make dialing in and pulling shots easier from day one. The Home Barista Cleaning Package gives you what you need to keep everything running well, because a clean machine is a machine that lasts.

Water is Your Best Preventive Maintenance

The single most important thing a new owner can do for a heat exchanger is to use the right water. Filtered, soft water in the range of 35 to 85 ppm is the best preventative maintenance there is. Scale is the enemy of any espresso machine, and the way to beat it is never to let it form in the first place. That means filtering for taste and using soft water to protect the boiler and avoid the need to descale. We're also looking to avoid pure distilled or reverse-osmosis water, which needs remineralization to work properly with espresso equipment.

If you have any questions about choosing your next heat exchanger, or you want to talk espresso, please do not hesitate to contact us. The Clive Coffee promise is that you will always get to talk to a real person with real coffee experience.
